Description

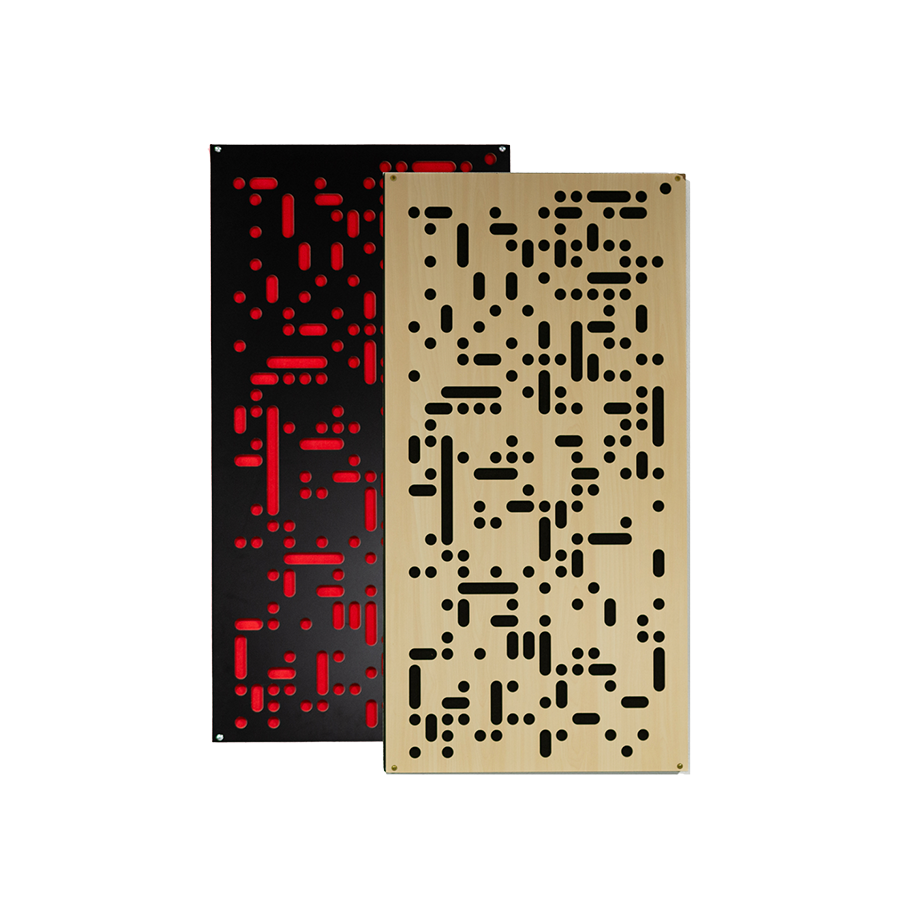

This binary amplitude diffuser is a cutting-edge hybrid acoustic panel. It seamlessly integrates a binary amplitude diffuser pattern attached to a pine wooden frame filled with rigid fiberglass insulation, encased in flame retardant acoustical fabric. This design achieves optimal balance between controlling reflections and preserving the natural ambiance of any room environment.

Binary amplitude diffusers are advanced acoustic tools known for their omni-directional diffusion capabilities. With approximately 30% open area, these diffusers effectively reflect mid to high frequencies and absorb low frequencies using a precisely engineered binary perforation pattern on and through a solid substrate.

These panels, lending modern design with superior acoustic efficiency, are popular choices for controlling sound reflections and reducing excessive reverberation in recording studios, home theatres, listening rooms, and offices alike.

Enhance the energy and liveliness by diffusing high frequencies for instruments like vocals, acoustic and electric guitars, cymbals, violins and other bright sounds.
Maintain clarity and brightness by reflecting upper frequencies while providing moderate absorption to control excessive resonance.
Ideal for spaces where over absorption has created a “dead” acoustic environment.

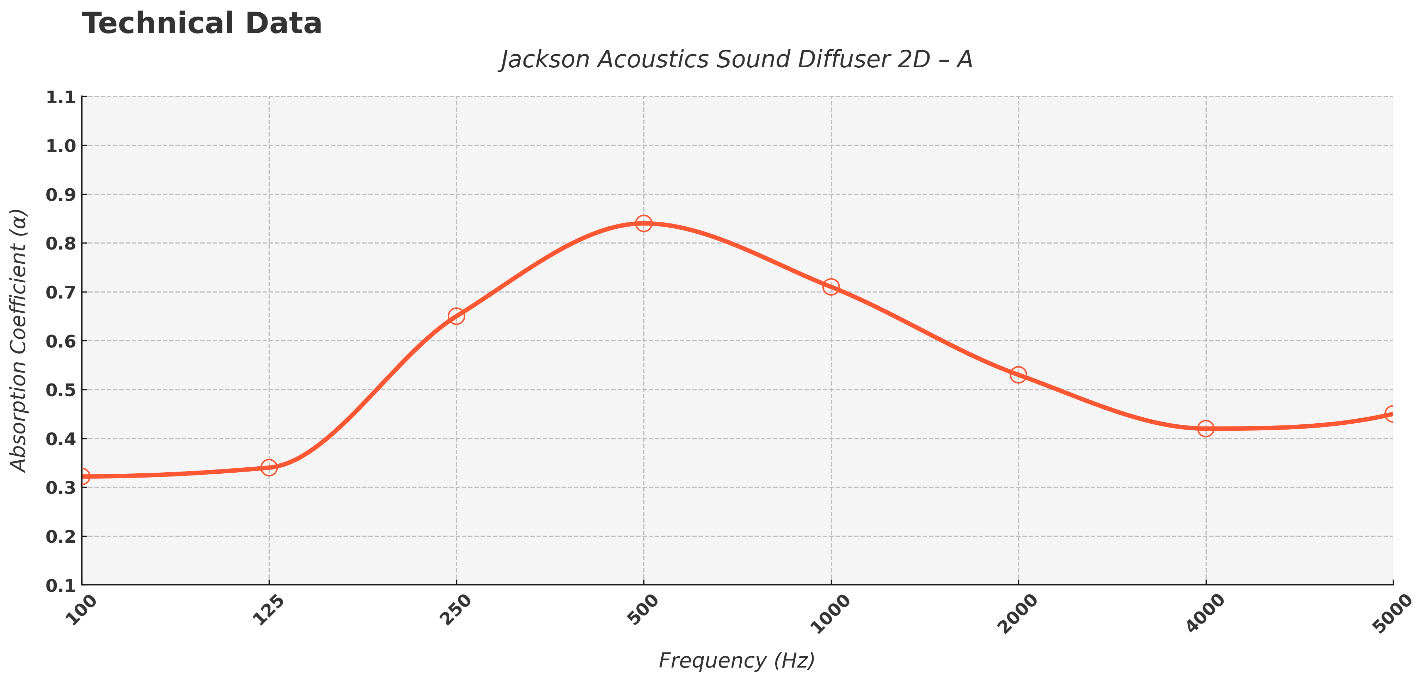

For detailed test data and the full acoustic performance report, click here to view the official test results.

Specifications
Absorption Frequency – Low
Diffusion Frequency – Mid to High
Materials – Melamine MDF Core Veneer with E0 formaldehyde emissions, Pine wood, Flame retardant acoustical fabric, 6lb per cubic ft high density rigid fiberglass.
NRC – 1.05
Functionality – Diffusion Absorption
Dimensions – 23” x 45.5 x 2.25”
Weight – 15lbs
Installation – French Cleat. Hardware Included
